0.3g Happymodel EP82 Backpack Module 10.5x10.5mm for Control Rapidfire VRX with ELRS TX Module FPV Racing Freestyle DIY Parts

Specifications:

Brand Name: Happymodel

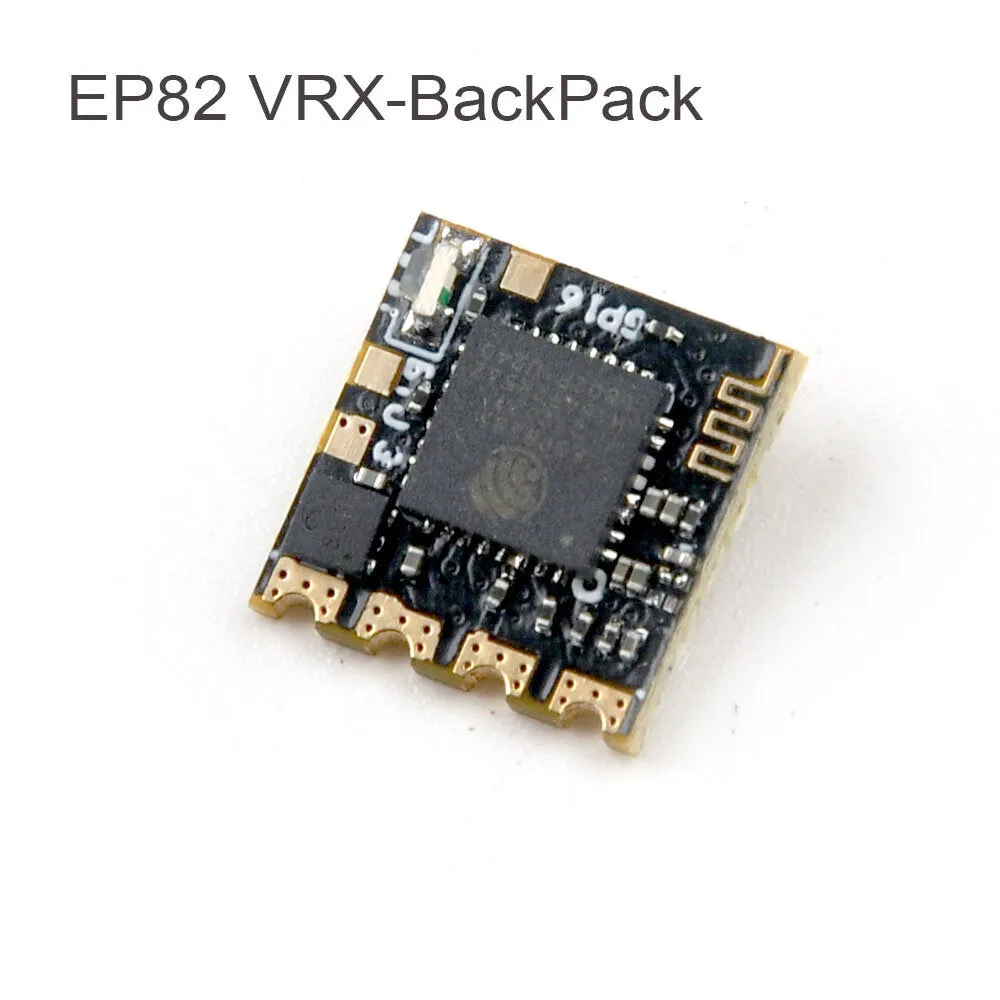

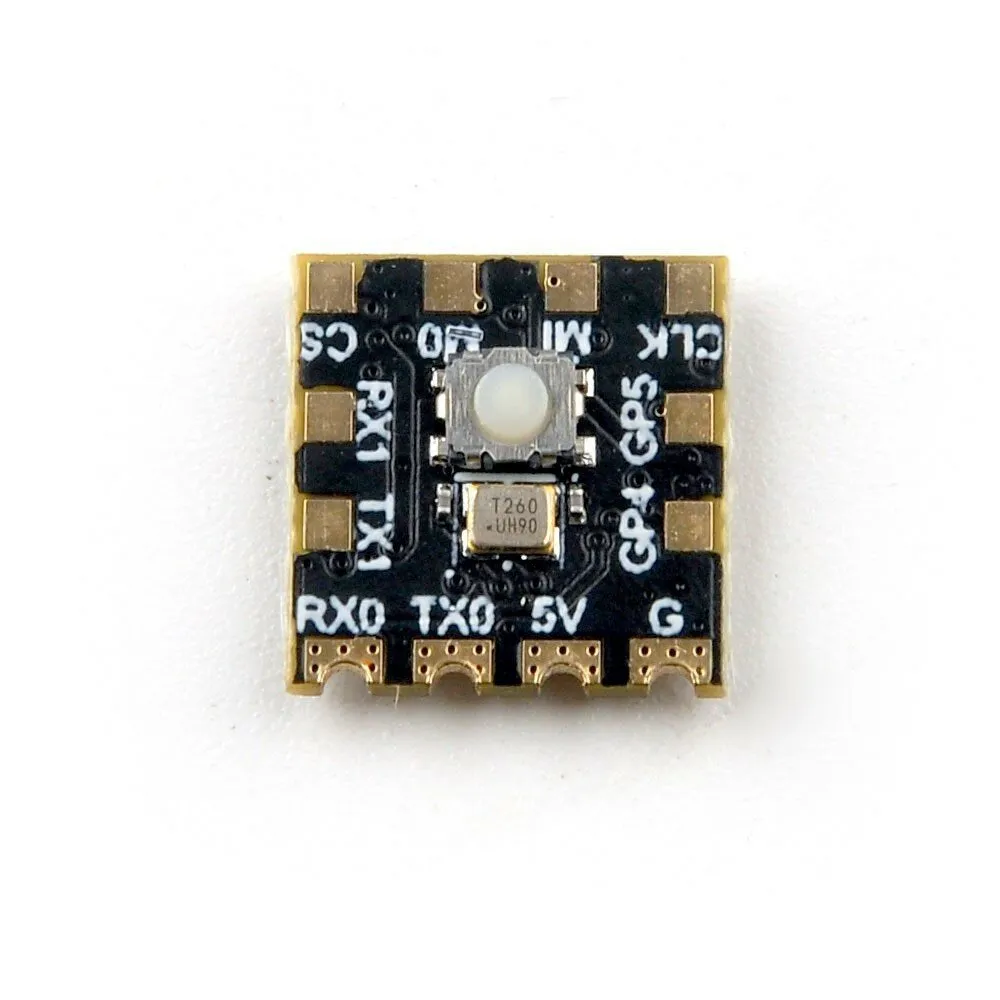

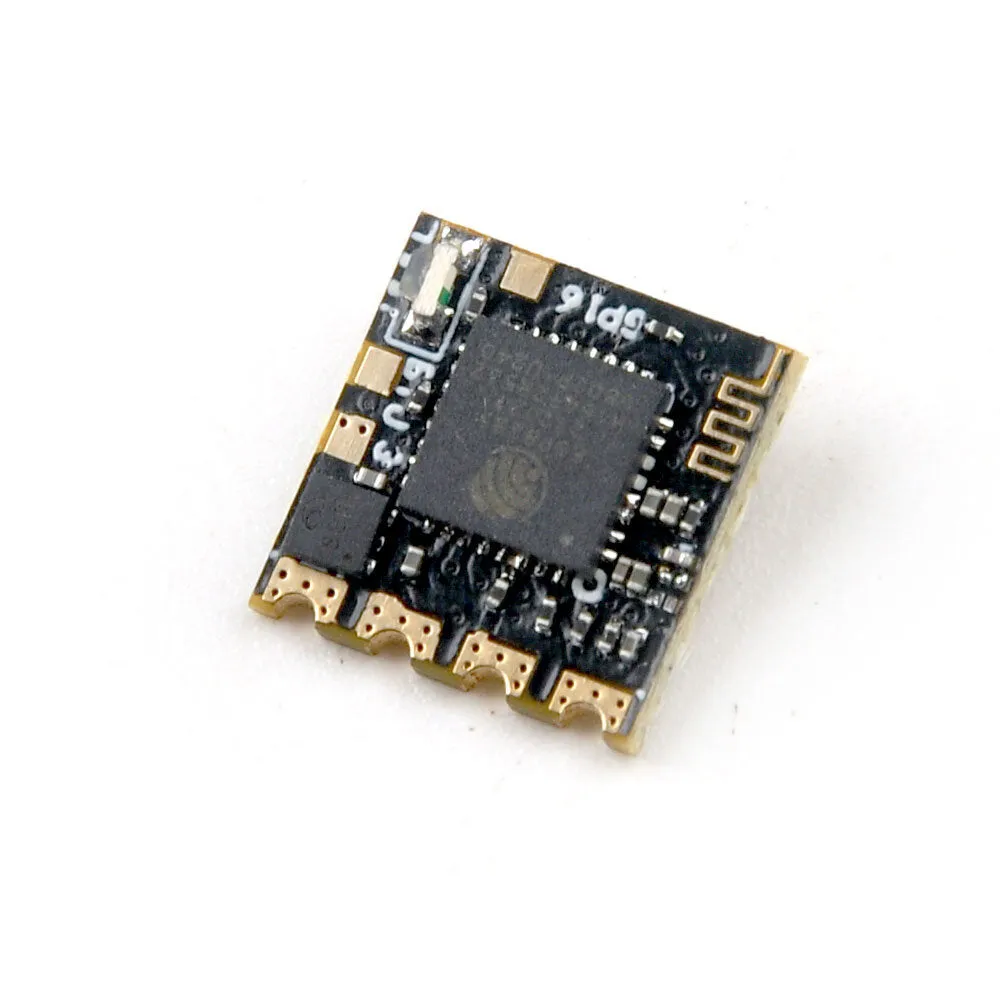

Item Name: EP82 Backpack Module

MCU:  ESP8285

Weight: 0.37g

Size: 10.5x10.5x3.5mm

What is a “TX Backpack”?

Some of the ExpressLRS TX modules include an additional ESP8285 chip, which lets us communicate wirelessly with other ESP8285 enabled devices using a protocol called espnow. We call this chip the “TX-Backpack”. The aim of the TX-Backpack is to allow wireless communication between ExpressLRS, and other FPV related devices for command and control, or for querying config.

Sounds interesting… What type of FPV devices can it talk to?

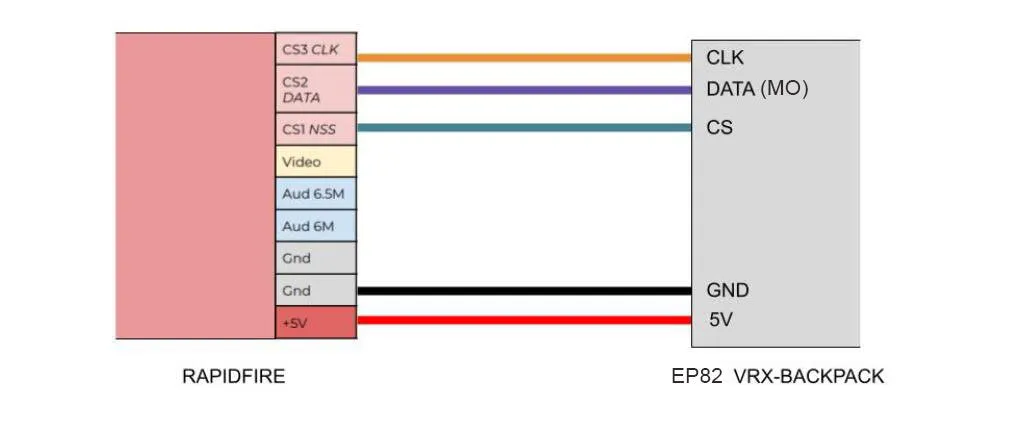

A primes use case is your video receiver module (or VRX). Currently there aren’t many VRX modules that have an ESP8285 built in to allow them to communicate with ExpressLRS, so in most cases you need to add your own. A small ESP based receiver can be “piggybacked” onto your VRX module, which allows ExpressLRS to control the band and channel that your goggles are set to. We call this device the “VRX-Backpack”.

Wow cool, so I’ll be able to control the module via ELRS!? Which VRX modules does it work with?

The list of supported modules can be found on the

wiki:

More information

Package Included:

1 x EP82 Backpack Module
